OK, here is the last post before I go to Oshkosh for a couple of days.  The wiring has come a long way since the last post.  While I had the Enigma instruments wired in and working, the Enigma itself was only temporarily installed, including a temporary hookup to the instruments.

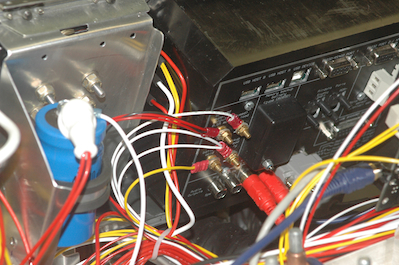

The first picture shows some progression of the Enigma instrument wiring, although it is not yet final as I was still working out how to fuse these circuits.

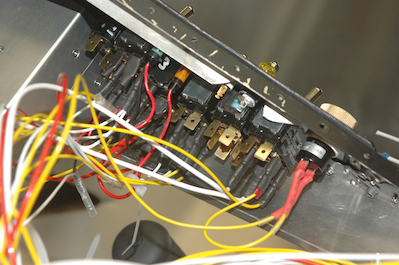

The second picture shows what should have been the final config of the wires for the right half, but component failures lead to some rework.

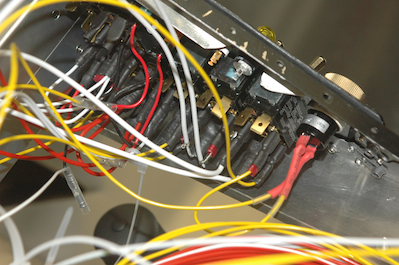

      These last two pictures show the wiring up of the ignition, start and mag switches.
