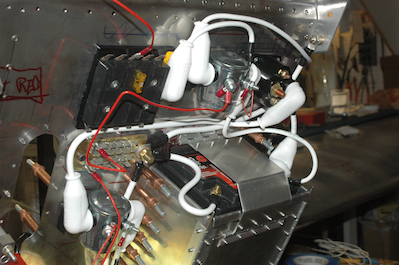

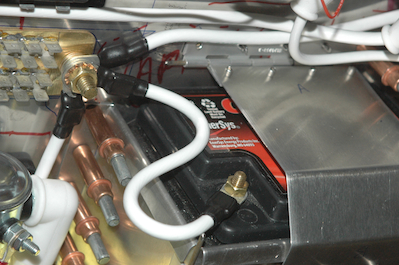

Adding more fat wires.  Now there is power to the always powered buss and the main power feed is hooked up to the master battery contactor. I haven’t drilled access holes through the firewall yet so I just hung the bundle on the side of the plane.  These pictures just show the growing spaghetti. The second picture shows all but one of the grounding wires.  There will be one more, a heavy strap, from the battery post to the engine block.  This picture also gives a good view of the ends I have attached.  I will some pictures making these heavy wire crimps if I remember.  The terminals are packaged with a nice piece of heavy heat shrink material that I put on.
