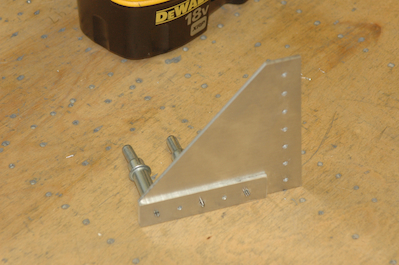

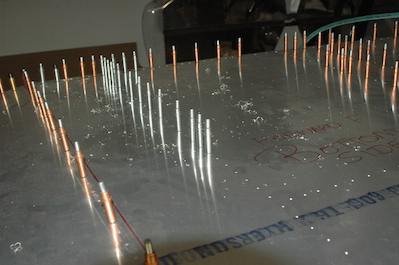

The first picture below shows the pilot drilling to attach the channel on the previous page. The second picture is a gusset and shim that attaches to the longeron and the just installed channel.

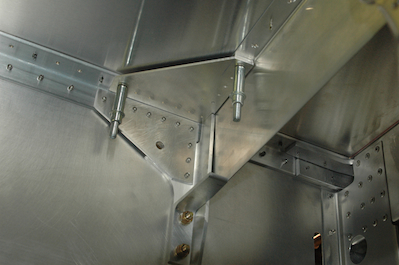

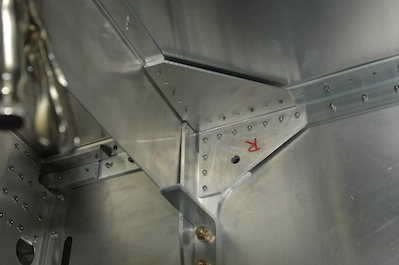

      These two pictures show the channel piece with both gussets attached.
