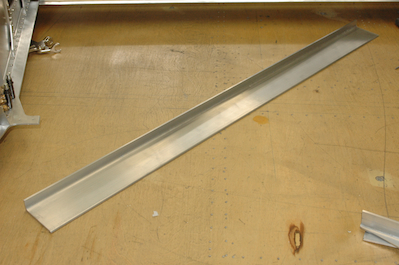

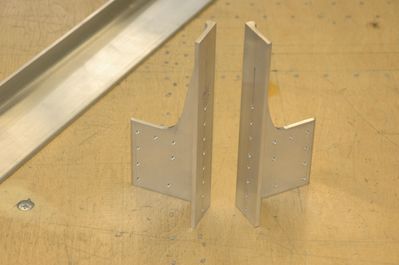

The first picture shows the aft spar tunnel angle after a long rip cut has been made. The next picture shows the two spar tunnel support angles after shaping and pilot drilling.

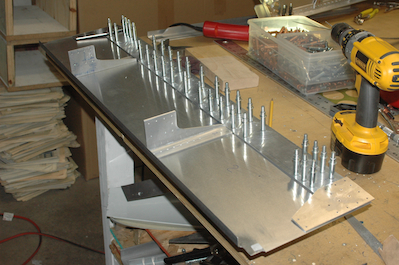

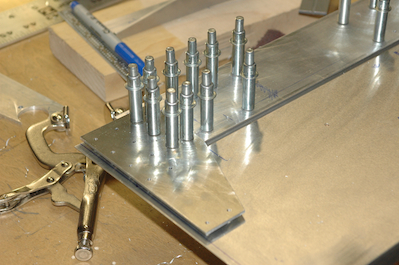

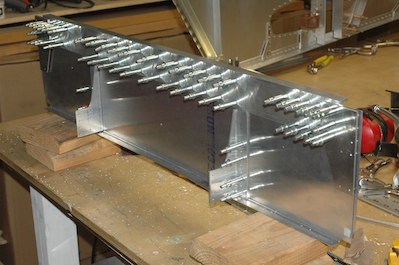

      The long spar tunnel angle was pilot drilled and then fitted to the aft channel stock along with two gussets and the two support angles. These pictures show the pilot drilling taking place. Picture number four is after all the updrilling has been completed.
