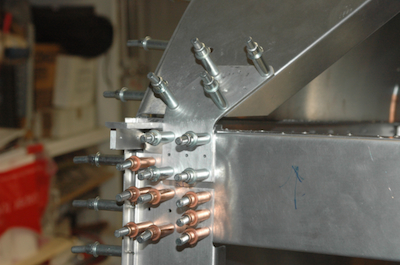

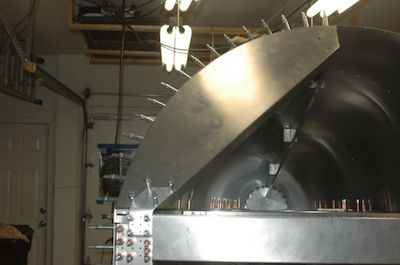

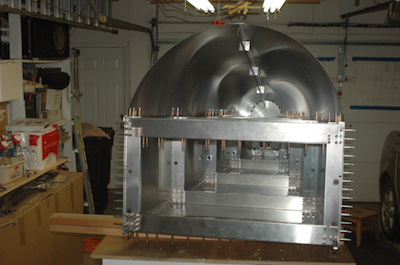

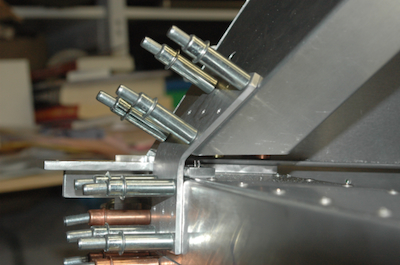

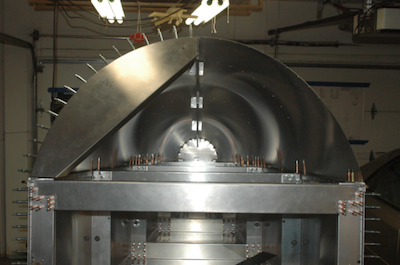

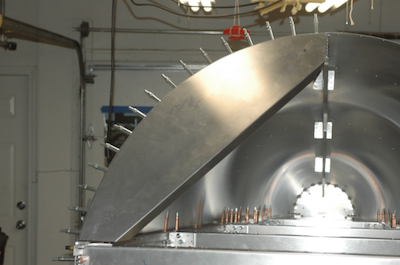

From the aft most to the front most. The second picture shows the RH former drilled in place. A better view in the first picture and then in the second, the RH attach plate I bent earlier is fitted and drilled. This is a big structural interchange here as the longerons, splice plates, box beam and former all interconnect here. |
