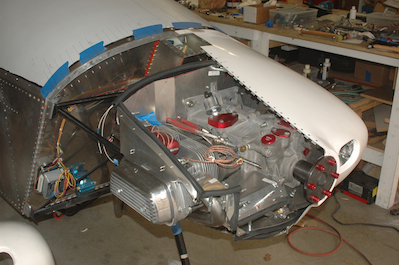

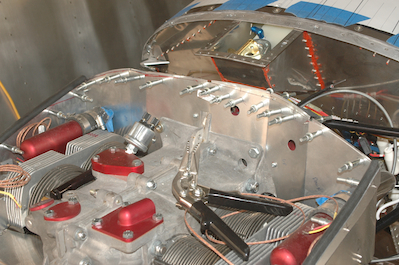

The first two pictures show another fit issue I had with the supplied parts.  The back piece comes flat with some cut work that you don’t have to do.  You just bend as required.  However, when mounting it to the block, which is rounded, the left side wants to lay back instead of stand straight up.  Because of this, it does not get close enough to the cowl.  I had to make another doubler piece to extend the supplied piece.  With this in place, fitting of the seal material continued.
