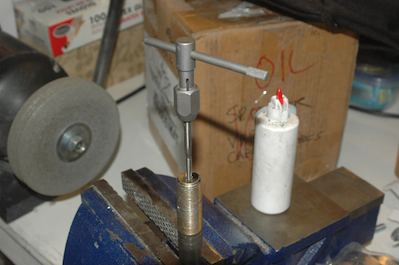

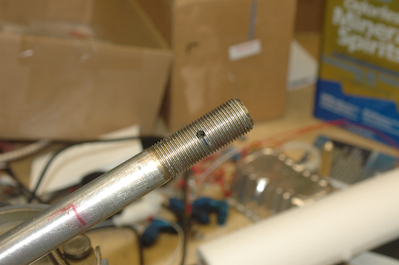

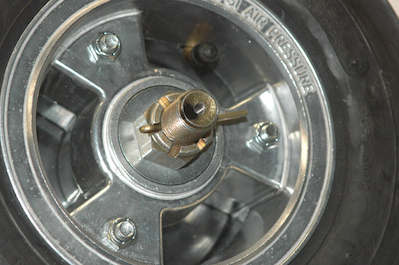

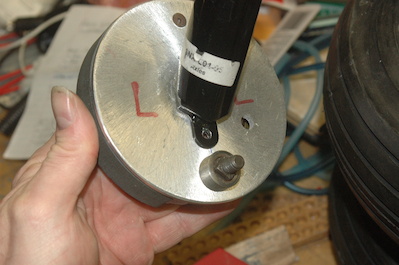

More prep work. The brake backing plate needs to be drilled and bolted to the axle assembly, and the axle assembly itself needs some work. A pilot hole needed to be drilled for attaching the axle assembly to the gear leg (not shown) as well as a hole through the axle for the cotter pin that secures the axle nut. The axle assembly is made up of a piece of steel tube that is welded to an AN 3/4” bolt. Drilling the hole did not prove so difficult but there was a predrilled hole in the end of the bolt that needed to be tapped with a 10-32 thread. The third picture shows this step and it was not easy. I have heard of other builders having the tap break off on them doing these holes. It was slow progress and on both axles, I had the tap get stuck and was unsure if I would be able to get it out without breaking the tap. They both came out fine. The hole is for the outboard mounting screw for the wheel pant. |
