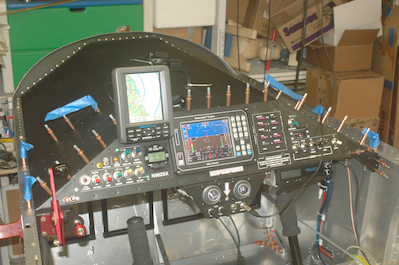

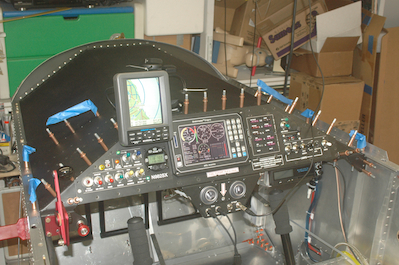

With the tank in place and the glare shield riveted home I did another leak test. This time I put sealant on the plug out of the gascolator and let the mineral spirits sit overnight. No leaks anywhere so I did another test of all the electrical systems and then drained the fuel system. The first two pictures show the state of the panel at this point. Notice that the panel had not been riveted in yet. I didn’t want to do that until I was pretty confident the tank would not have to come out for any reason.

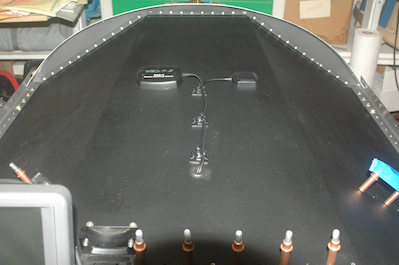

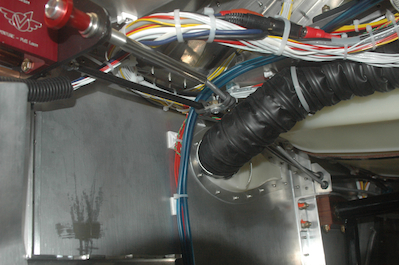

The third picture is a view under the panel with everything secured again. The last picture shows the final install of the GPS antenna runs – the antennas will be velcroed in place.
