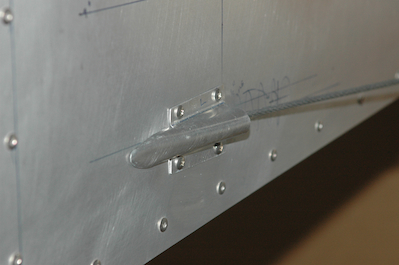

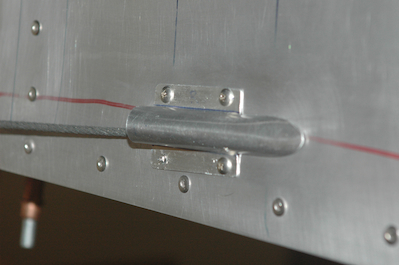

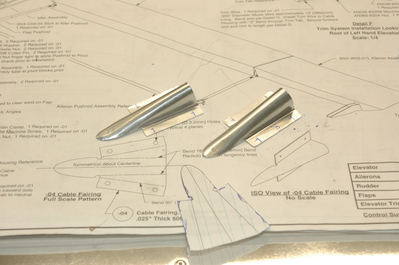

These two pieces are the rudder cable fairings. They were fun to make but the right side proved very troublesome to install. In the second picture, the left side fairing is installed. In the third picture you can see that the two lower holes do not have screws in them. Actually, the most forward hole in that picture does have a screw, but the head came off the screw!

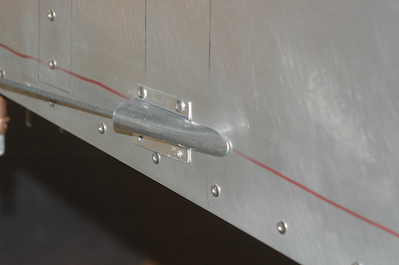

The two lower holes on the right side go through the one inch angle as well as the side skin. The screw could not take the force of taping into the angle. I did get the screw out. I then decided to enlarge the two lower holes by 1/64”. The forward most screw went in great but the aft screw also broke in the now enlarged hole. That is shown in the last picture. I got that screw out and put a little fluid in the hole and the next screw went in fine.
