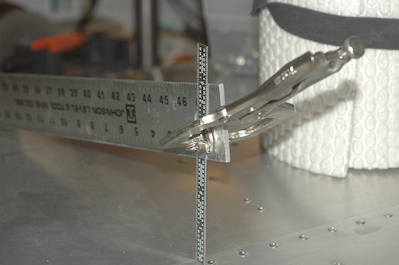

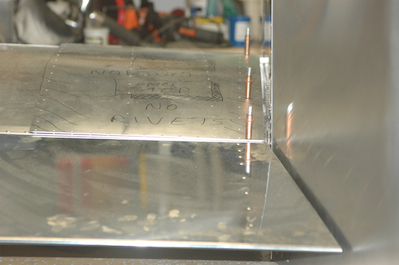

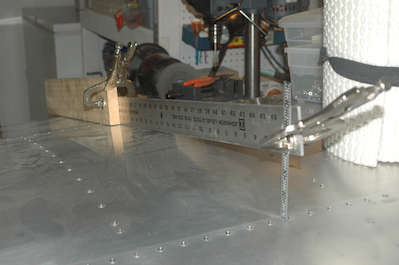

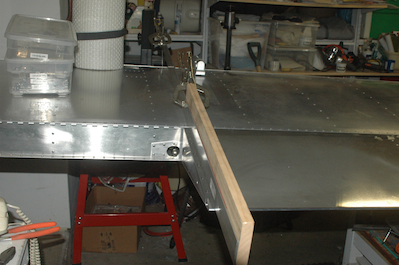

These pictures show the contraption I’m using to set the flap position. The flap is supposed to lie on the tangent to a line from the edge of the wing to a point 2 29/32” above the rear of the leading edge skin. The flap handle is in the 0° detent while making these measurements. Both flaps are on and set up. The ailerons and elevator are next up. |
