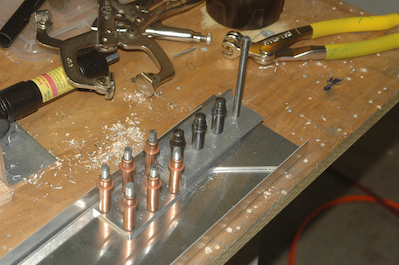

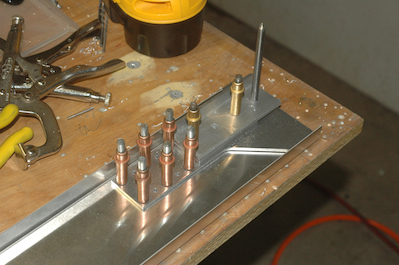

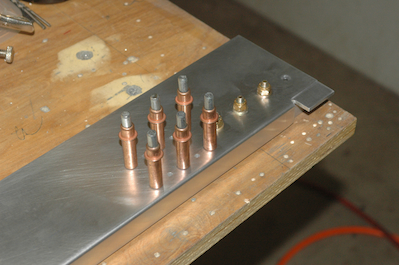

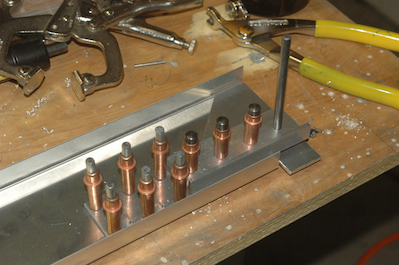

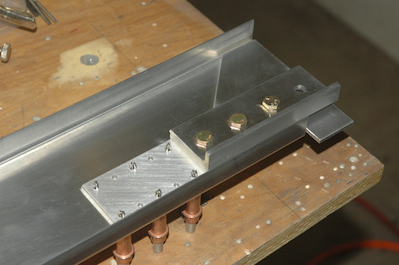

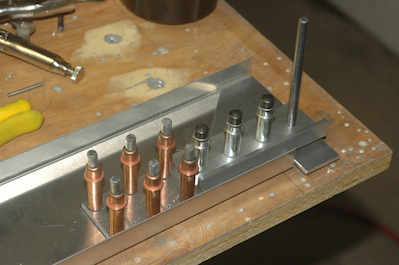

In the first four pictures, the holes are all being updrilled to their final sizes. The last two pictures show the deburred and cleaned piece with the bolts attached. No rivets yet incase these components need to come apart in a future sequence.
