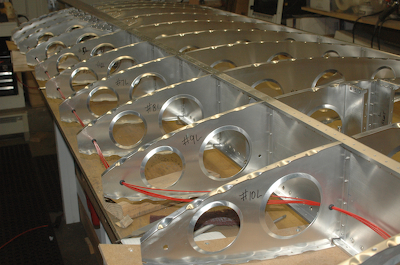

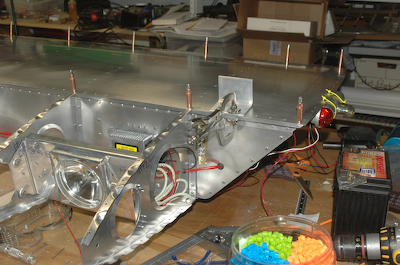

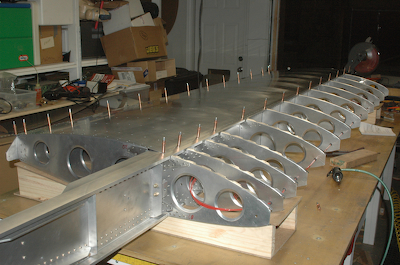

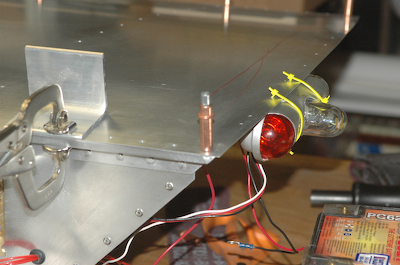

Here are four pictures of the wing with the wiring all run. Notice in picture one that the wire jogs from the front to the back. At the inboard end I want the wire forward of the flap mechanism in the root bay. At the outboard end I wand the wire behind the landing light hence the jog. In the middle two pictures deburring and cleanding have been completed so I can mount the top skin. It will not be riveted for awhile but it should never have to come off again. I hung the Aeroflash unit. Top quality job. It is actually very close to its final location, just about an inch lower on the fiberglass tip rib. |
