Wing Spars
Previous
1
2
3
4
Next

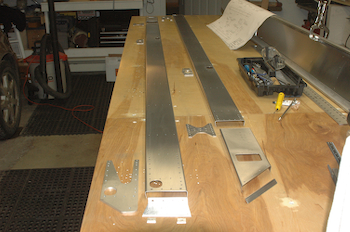

All cleaned and deburred and ready to rivet.

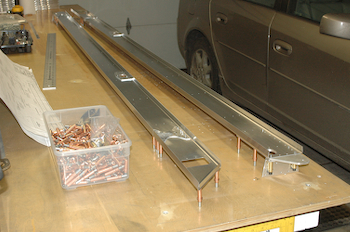

Notice the nuts holding the flange are mounted on a chamfered block to accommodate the radius of the angle stock.

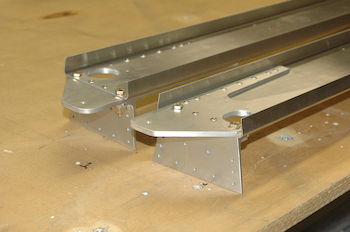

All finished now. The hole in the mounting plate is for passage of the flap drive rod.
