My first attempt at hooking up the throttle ended up short, literally.  I did not have enough music wire in the cable housing to make a connection.  I ordered 20 feet of it and replaced the supplied wire.  I bought extra to use in the cowl lower hinge.

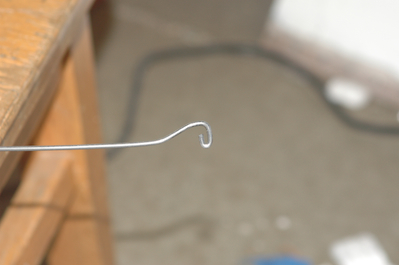

The first attempt followed Sonex‚Äôs direction and leaves you with a crappy wire end that has a lot of free play and promptly scratched the housing surface.  Picture two shows the final wire end I used.

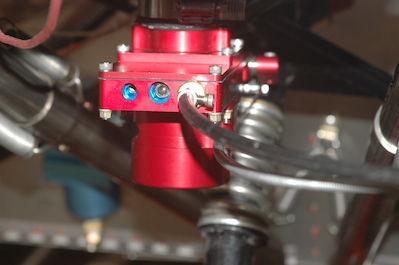

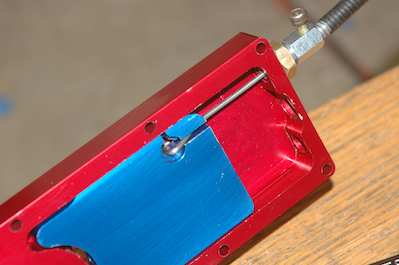

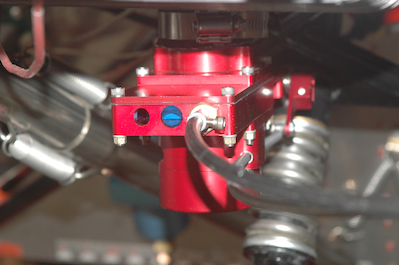

The third picture shows the Aerocarb with the throttle closed and the mixture at Idle cutoff. Picture one shows how the throttle slide is positioned when closed.  The fourth picture shows WOT and the mixture at full rich.
