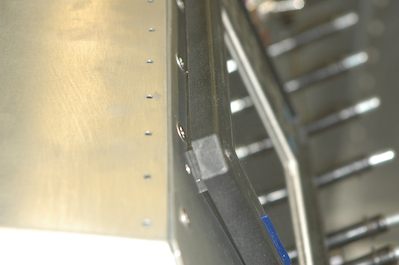

The previous pictures also showed the glare shield in position. You can see it in the first two pictures.  Picture one also shows a problem.  I wrote before that I thought the Enigma clearance of the support I made would increase when I attached the glare shield.  Wrong!

Apparently, without the glare shield, the frame and channel it attaches to, had enough spring to hold the Enigma at a higher angle than when the panel is attached to the glare shield. I had a fix in mind which worked, I will post pictures later as I neglected to take any.

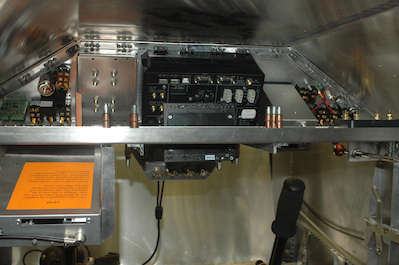

The second picture shows the interior space under the glare shield and behind the panel.

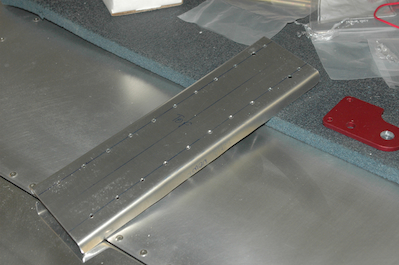

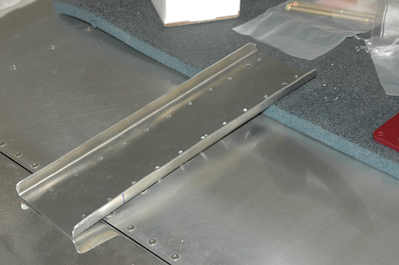

      These two pictures are of a support channel I made to hold the GPS unit.
