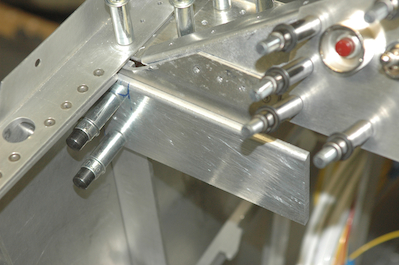

The last components to be added to or below the panel are the throttle and mixture controls. The first pictures shows a mounting plate I cut out of scrap 3/16” 2”x2” angle. The throttle control comes with a plate but I did not like the location of the mixture control.

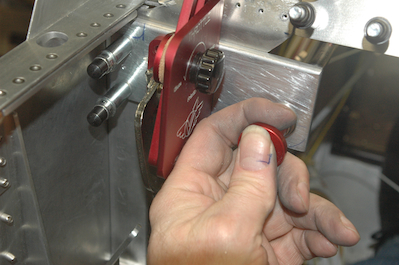

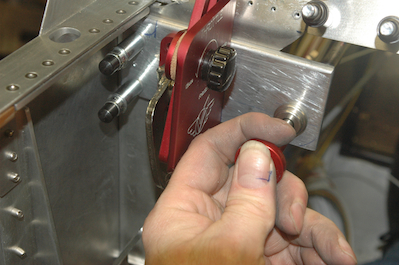

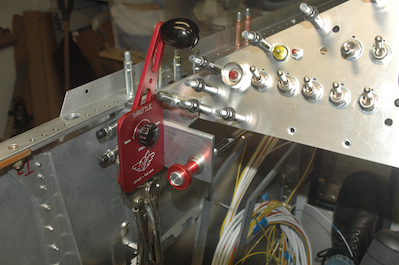

The last two pictures show the mixture control moved over 3/4” from the location on the supplied plate. That allows for me to easily grip the control with my left hand. The throttle was clamped in place in these pictures, first to determine where to mount the mixture control and then to test it.
