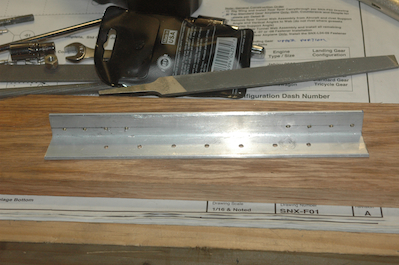

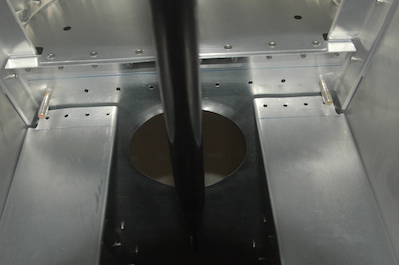

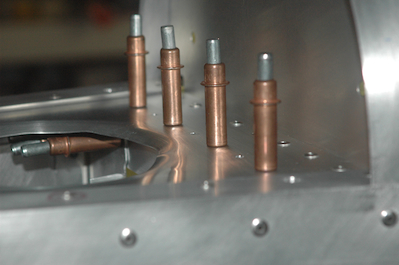

These four pictures show the area being worked with the angle removed, then the new angle. There is a blue reference line that shows the position of the old angles position. I mounted the new angle about 1/8” aft of this line. There was enough play in the channel it attached to that allowed this. The last two pictures show it being installed and riveted in place. |
