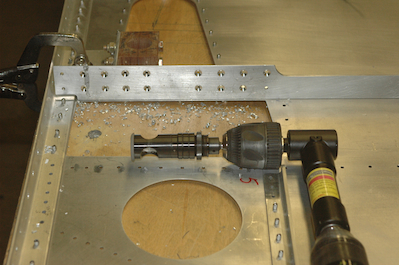

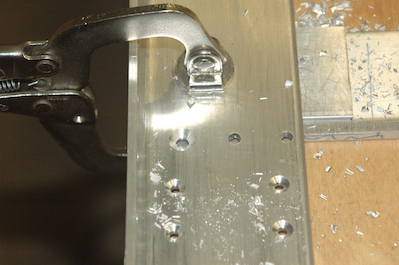

The first two pictures show one of the two most challenging pieces. This piece has 18 counter sunk holes but it is already attached to the side panel. The first picture shows the holes that can be done with the normal setup. The second picture shows the holes that can be done only with the angle head. The remaining two holes have to be done without the benefit of the micro-stop tool. I also had to do the left side the same way.

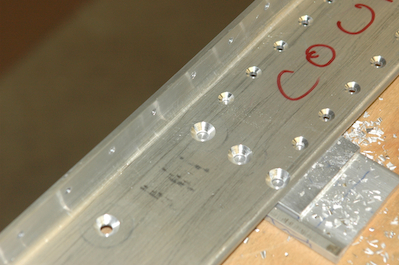

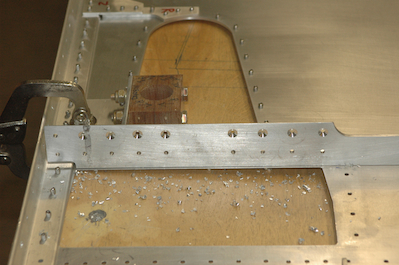

The last two pictures show the start of drilling the larger countersinks.
