Done with gussets.
Click on picture to
view larger image.

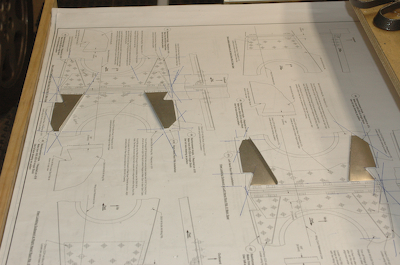

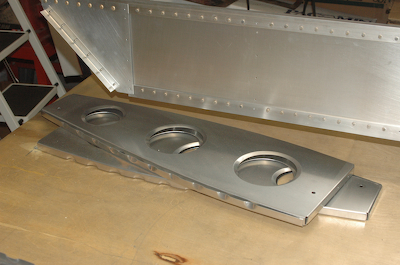

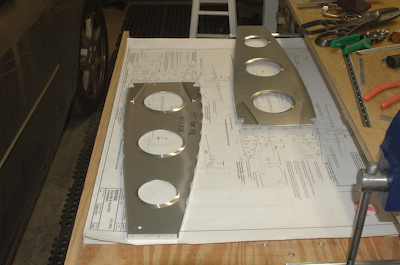

The first photo below shows the four ribs remaining to be modified. I used two of them to make up the aft root ribs. The second picture shows the final rib gussets.

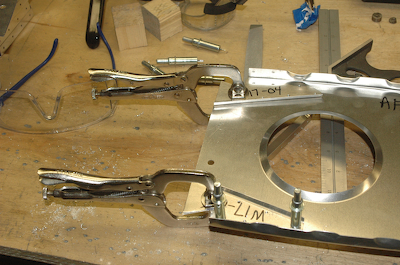

Here are the gussets in position and being match drilled and attached to the rib.
May 27, 2007
