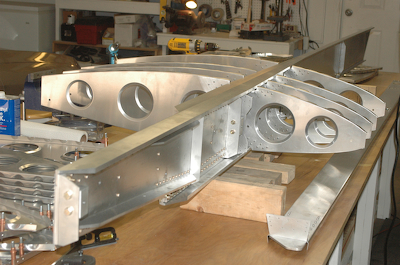

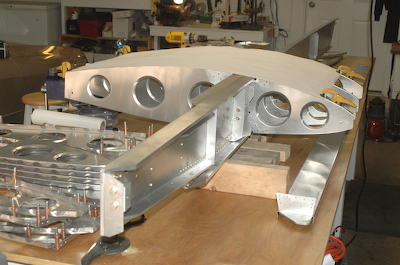

These pictures show all four, fore and aft ribs finished and mounted.  The second picture has a plans page doing a stand in for the aluminum wing skin.

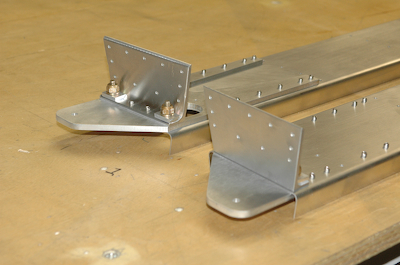

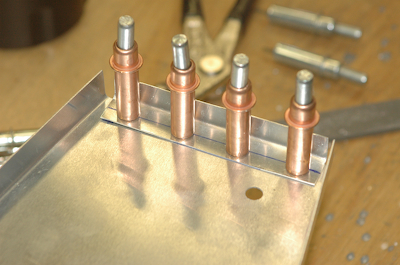

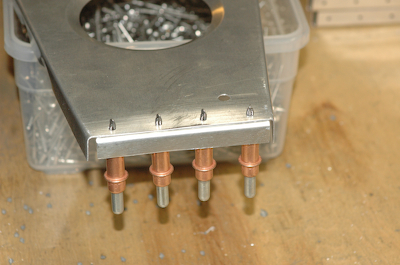

      After finishing the left ribs I started on the right.  Mostly they are identical, but the #1 aft rib has its end flange cut off and replaced with an angle offset forward 5/32”.  The rear spars are slightly different as shown below these first two pictures.  This mod accommodates the difference.

      I also had to modify the #5 aft right aft rib a small amount because of the fact that the left and right rib flanges all bend the same way.  On the right wing there is a small interference with the spar cap taper that doesn’t occur on the left wing because of the 1/2” difference of where the corner of the flange meets the spar cap.

      I’ve also cut the blanks for the root rib gussets and mostly finished riveting the right ribs, just no pictures since it is all the same.
