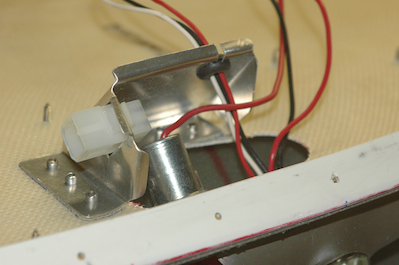

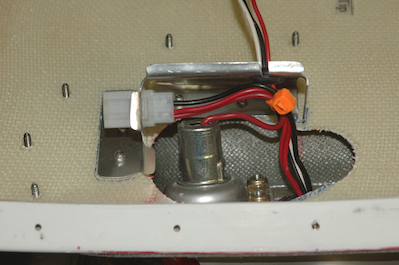

Here is the clip riveted to the wing tip. It supports the connector and the three wires that connect the strobe to their power supplies.

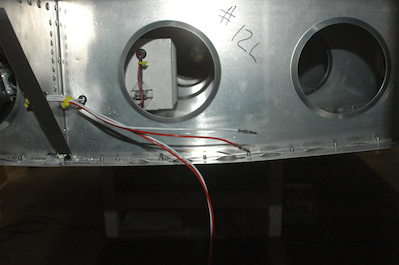

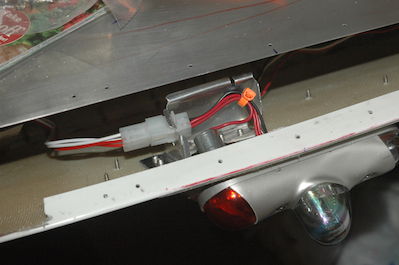

The first picture shows the four wires that go into the external clip. They are power for the Nav/Pos lights, their ground wire, a spare power run and a spare ground. The last picture shows everything wired up.
|
